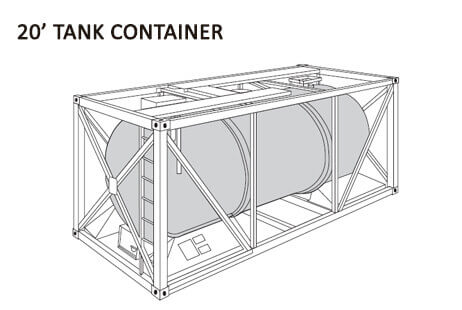

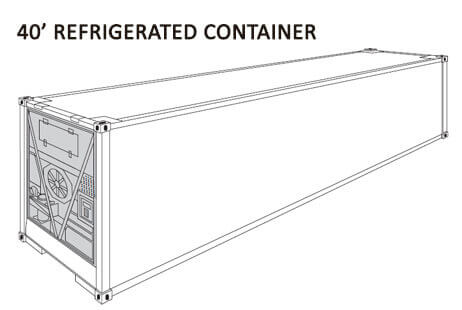

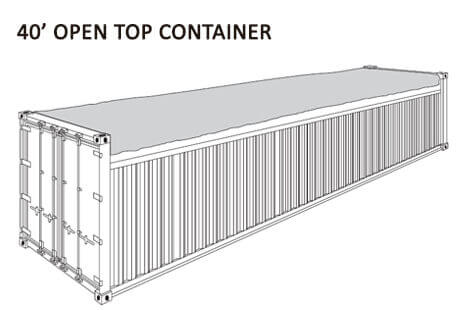

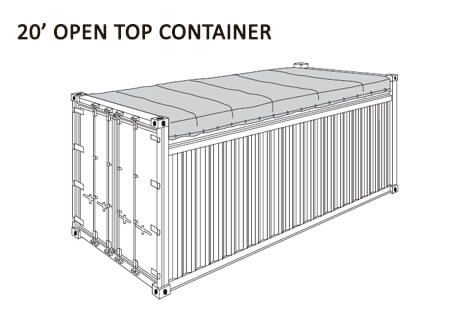

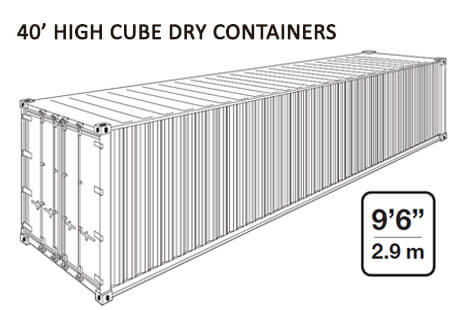

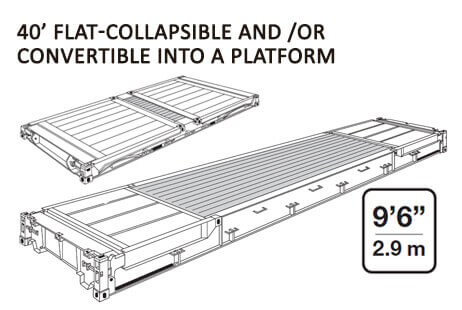

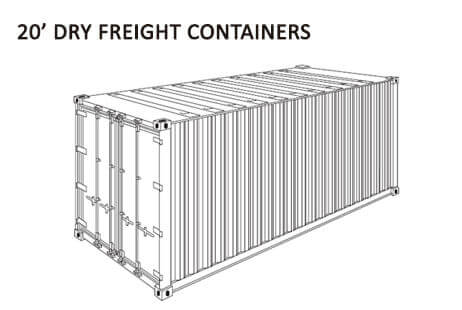

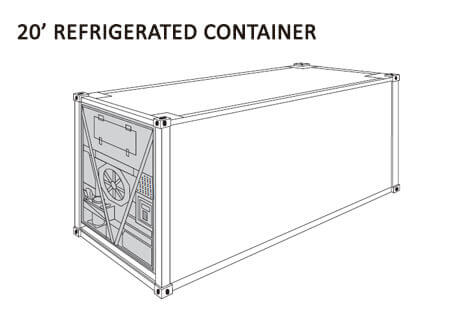

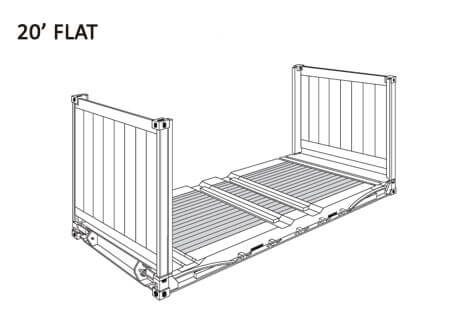

You can download the documents in the download area with all the dimensions and technical specifications of the containers: General Purpose Container 20', General Purpose Container 40', High Cube General Purpose Container 40', High Cube General Purpose Container 45', Hardtop Container 20', Hardtop Container 40', High Cube Hardtop Container 40', Open Top Container 20', Open Top Container 40', Flat – All Types 20', High Cube Flat 40', Flat-Collapsible and/or Convertible into a Platform 20'/40', Ventilated Container 20', Refrigerated Container (Temperature Controlled Container) 20', Refrigerated Container (Temperature Controlled Container) 40', Tank Container 20'.
INSIDE DIMENSIONS | DOOR OPENING | MAX. GROSS/TARE | MAX. PAYLOAD/VOLUME |
---|---|---|---|
L: 5895 mm W: 2350 mm H: 2392 mm L: 19’ 4 1/8” ft W: 7’ 8 1/2” ft H: 7’ 10 1/8” ft | W: 2292 mm H: 2340 mm W: 7’ 6 1/4” ft H: 7’ 8 1/8” ft | 30480 kg 2250 kg 67200 lbs 4960 lbs | 28230 kg 33,20 m3 62240 lbs 1172 cu.ft |

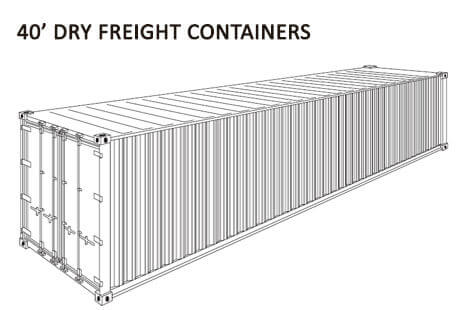

INSIDE DIMENSIONS | DOOR OPENING | MAX. GROSS/TARE | MAX. PAYLOAD/VOLUME |
---|---|---|---|
L: 12029 mm W: 2350 mm H: 2392 mm L: 39’ 5 1/2” ft W: 7’ 8 1/2”” ft H: 7’ 10 1/8” ft | W: 2292 mm H: 2340 mm W: 7’ 6 1/4” ft H: 7’ 8 1/8” ft | 30480 kg 3780 kg 67200 lbs 8330 lbs | 26700 kg 67,70 m3 58870 lbs 2390 cu.ft |
INSIDE DIMENSIONS | DOOR OPENING | MAX. GROSS/TARE | MAX. PAYLOAD/VOLUME |
---|---|---|---|
L: 12024 mm W: 2350 mm H: 2697 mm L: 39’ 5 3/8” ft W: 7’ 8 1/2” ft H: 8’ 10 1/8” ft | W: 2597 mm H: 2340 mm W: 8’ 6 1/4” ft H: 7’ 8 1/8” ft | 30480 kg 4020 kg 67200 lbs 8860 lbs | 26460 kg 76,30 m3 58340 lbs 2694 cu.ft |

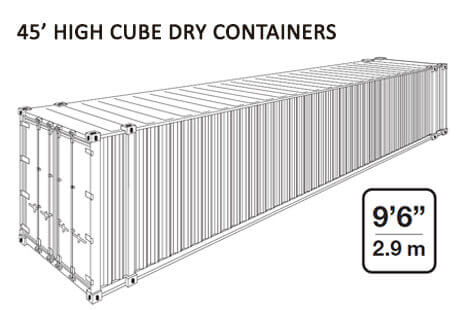

INSIDE DIMENSIONS | DOOR OPENING | MAX. GROSS/TARE | MAX. PAYLOAD/VOLUME |
---|---|---|---|
L: 13532 mm W: 2414 mm H: 2694 mm L: 44’ 4 3/4” ft W: 7’ 11” ft H: 8’ 10” ft | W: 2585 mm H: 2374 mm W: 8’ 5 3/4” ft H: 7’ 9 1/2” ft | 34000 kg 4950 kg 74960 lbs 10910 lbs | 29050 kg 88,40 m3 64050 lbs 3122 cu.ft |

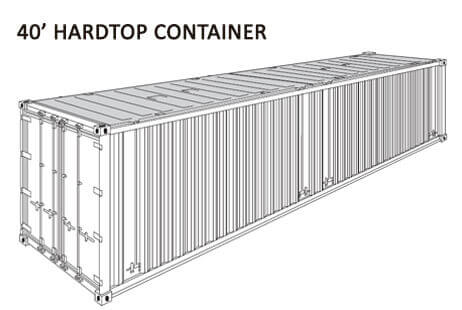

INSIDE DIMENSIONS | MAX. GROSS/TARE | MAX. PAYLOAD/VOLUME |
---|---|---|
L: 12020 mm W: 2342 mm H (middle): 2388 mm H (side): 2313 mm L: 39’ 5 1/4” ft W: 7’ 8 1/8” ft H (middle): 7’ 10” ft H (side): 7’ 7” ft | 30480 kg 4700 kg 67200 lbs 10360 lbs | 25780 kg 67,20 m3 56840 lbs 2374 cu.ft |

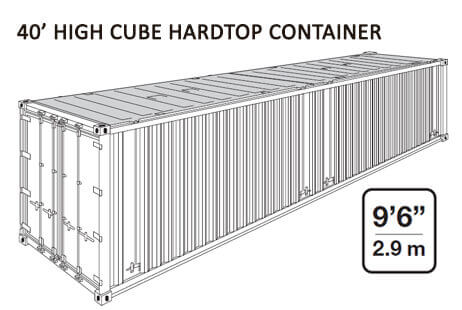

INSIDE DIMENSIONS | MAX. GROSS/TARE | MAX. PAYLOAD/VOLUME |
---|---|---|
L: 12020 mm W: 2342 mm H (middle): 2693 mm H (side): 2618 mm L: 39’ 5 1/4” ft W: 7’ 8 1/8” ft H (middle): 8’ 10” ft H (side): 8’ 7” ft | 30480 kg 4900 kg 67200 lbs 10803 lbs | 25580 kg 75,80 m3 56397 lbs 2677 cu.ft |
INSIDE DIMENSIONS | MAX. GROSS/TARE | MAX. PAYLOAD/VOLUME |
---|---|---|
L: 5888 mm W: 2345 mm H (middle): 2365 mm H (side): 2315 mm L: 19’ 3 3/4” ft W: 7’ 8 1/8” ft H (middle): 7’ 9” ft H (side): 7’ 7 1/8” ft | 30480 kg 2250 kg 67200 lbs 4960 lbs | 28230 kg 32,00 m3 62240 lbs 1130 cu.ft |
INSIDE DIMENSIONS | MAX. GROSS/TARE | MAX. PAYLOAD/VOLUME |
---|---|---|
L: 12029 mm W: 2342 mm H (middle): 2376 mm H (side): 2326 mm L: 39’ 5 1/2” ft W: 7’ 8 1/8” ft H (middle): 7’ 9 1/2” ft H (side): 7’ 7 1/2” ft | 30480 kg 3810 kg 67200 lbs 8400 lbs | 26670 kg 65,50 m3 58800 lbs 2310 cu.ft |
Construction 8’ 6” high | Inside Dimensions | Weights | |||||||
Length of floor mm ft | Length between corner posts mm ft | Width of floor mm ft | Width between side rails mm ft | Height mm ft | Height of bottom mm ft | Max. Gross kg lbs | Tare kg lbs | Max. Payload kg lbs | |
Flat/Platform with flushfolding endwalls and softwood floor | 5850 19’ 2 1/4” | 5638 18’ 6” | 2438 8’ | 2208 7’ 2 7/8” | 2233 7’ 3 7/8” | 370 1’ 2 1/2” | 40000 88184 | 2940 6482 | 37060 81702 |
Steelframe with collapsible endwalls and softwood floor | 5950 19’ 6 1/4” | 5675 18’ 7 3/8” | 2428 7’ 11 5/8” | 2213 7’ 3 1/8” | 2270 7’ 5 3/8” | 316 1’ 3/8” | 33000 72752 | 2600 5732 | 30150 67020 |
Flat/Platform with flushfolding endwalls and softwood floor | 6038 19’ 9 3/4” | 5638 18’ 6” | 2435 7’ 11 7/8” | 2208 7’ 2 7/8” | 2235 7’ 4” | 370 1’ 2 1/2” | 30480 67200 | 2520 5560 | 27960 61640 |
6038 19’ 9 3/4” | 5612 18’ 4 7/8” | 2438 8’ | 2210 7’ 3” | 2213 7’ 3 1/8” | 370 1’ 2 1/2” | 34000 74950 | 2740 6040 | 31260 68910 |

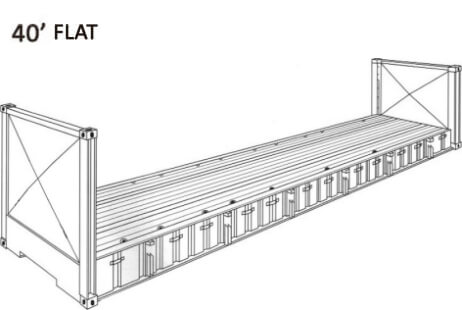

Construction 8’ 6” high | Inside Dimensions | Weights | |||||||
Length of floor mm ft | Length between posts mm ft | Width of floor mm ft | Width between side rails mm ft | Height floor to top face mm ft | Height of bottom mm ft | Max. Gross kg lbs | Tare kg lbs | Max. Payload kg lbs | |
Steelframe with fixed endwalls, and softwood floor | 12010 39’ 4 7/8” | 11832 38’ 9 7/8” | 2228 7’ 3 3/4” | 2228 7’ 3 3/4” | 1981 6’ 6” | 610 2” | 45000 99210 | 4200 9265 | 40800 89945 |
12086 39’ 7 7/8” | 11826 38’ 9 5/8” | 2224 7’ 3 1/2” | 2224 7’ 3 1/2” | 1981 6’ 6” | 610 2” | 45000 99210 | 4200 9265 | 40800 89945 | |
12010 39’ 4 7/8” | 11826 38’ 9 5/8” | 2244 7’ 4 3/8” | 2204 7’ 2 3/4” | 1981 6’ 6” | 610 2” | 45000 99210 | 4200 9265 | 40800 89945 |

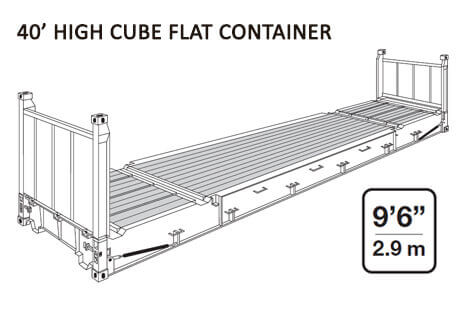

Construction 9’ 6” high | Inside Dimensions | Weights | |||||||
Length of floor mm ft | Length between posts mm ft | Width of floor mm ft | Width between side rails mm ft | Height floor to top face mm ft | Height of bottom mm ft | Max. Gross kg lbs | Tare kg lbs | Max. Payload kg lbs | |
Steelframe with collapsible flushfolding endwalls - can be converted to a platform | 12060 39’ 6 3/4” | 11660 38’ 3 1/8” | 2365 7’ 9 1/8” | 2200 7’ 2 5/8” | 2245 7’ 4 3/8” | 648 2’ 1 1/2” | 45000 99210 | 5700 12570 | 39300 86640 |
12048 39’ 6 1/4” | 11652 38’ 3” | 2370 7’ 9 1/8” | 2200 7’ 2 5/8” | 2258 7’ 4 7/8” | 648 2’ 1 1/2” | 50000 110230 | 5950 13120 | 44050 97110 |

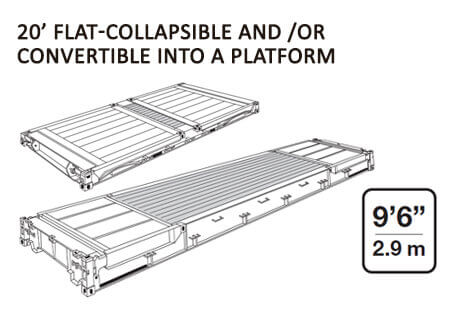

Construction 1’ 1 1/4” high | Inside Dimensions | Weights | ||||
Length mm ft | Width mm ft | Height of bottom mm ft | Max. Gross kg lbs | Tare kg lbs | Max. Payload kg lbs | |
Steelframe with collapsible flushfolding endwalls - can be converted to a platform | 6058 20’ | 2438 8’ | 370 1’ 2 9/16” | 30480 67200 | 2520 5560 | 27960 61640 |
6058 20’ | 2438 8’ | 370 1’ 2 9/16” | 34000 74950 | 2740 6040 | 31260 68910 | |
6058 20’ | 2438 8’ | 370 1’ 2 9/16” | 40000 88180 | 2940 6480 | 37060 81700 | |
Construction 2’ high | Inside Dimensions | Weights | ||||
Length mm ft | Width mm ft | Height of bottom mm ft | Max. Gross kg lbs | Tare kg lbs | Max. Payload kg lbs | |
Steelframe with collapsible flushfolding endwalls - can be converted to a platform | 12192 40’ | 2245 7’ 4 3/8” | 648 2’ 1 1/2” | 45000 99210 | 5700 12570 | 39300 86640 |
12192 40’ | 2245 7’ 4 3/8” | 648 2’ 1 1/2” | 50000 110230 | 5950 13120 | 44050 97110 |
INSIDE DIMENSIONS | MAX. STOW. HEIGHT | DOOR OPENING | MAX. GROSS/TARE | MAX. PAYLOAD/VOLUME |
---|---|---|---|---|
L: 5479 mm W: 2286 mm H: 2257 mm L: 17’ 11 5/8” ft W: 7’ 6” ft H: 7’ 4 7/8” ft | H: 2157 mm H: 7’ 7/8” ft | W: 2220 mm H: 2286 mm W: 7’ 3 3/8” ft H: 7’ 6” ft | 30480 kg 3160 kg 67200 lbs 6970 lbs | 27320 kg 28,30 m3 60230 lbs 999 cu.ft |
Construction 8’ 6” high non foodstuff | ||||
---|---|---|---|---|
INSIDE DIMENSIONS | MAX. STOW. HEIGHT | DOOR OPENING | MAX. GROSS/TARE | MAX. PAYLOAD/VOLUME |
L: 11563 mm W: 2294 mm H: 2261 mm L: 37’ 11 1/4” ft W: 7’ 6 1/4” ft H: 7’ 5” ft | H: 2161 mm H: 7’ 1” ft | W: 2188 mm H: 2288 mm W: 7’ 2 1/8” ft H: 7’ 6” ft | 30480 kg 4600 kg 67200 lbs 10140 lbs | 25880 kg 60,00 m3 57060 lbs 2120 cu.ft |
Construction 9’ 6” high | ||||
INSIDE DIMENSIONS | MAX. STOW. HEIGHT | DOOR OPENING | MAX. GROSS/TARE | MAX. PAYLOAD/VOLUME |
L: 11643 mm W: 2288 mm H: 2498 mm L: 38’ 2” ft W: 7’ 6 1/8” ft H: 8’ 2 3/8” ft | H: 2378 mm H: 7’ 9 5/8” ft | W: 2288 mm H: 2517 mm W: 7’ 6 1/8” ft H: 8’ 3 1/8” ft | 30480 kg 4180 kg 67200 lbs 9220 lbs | 26300 kg 66,50 m3 57980 lbs 2348 cu.ft |
